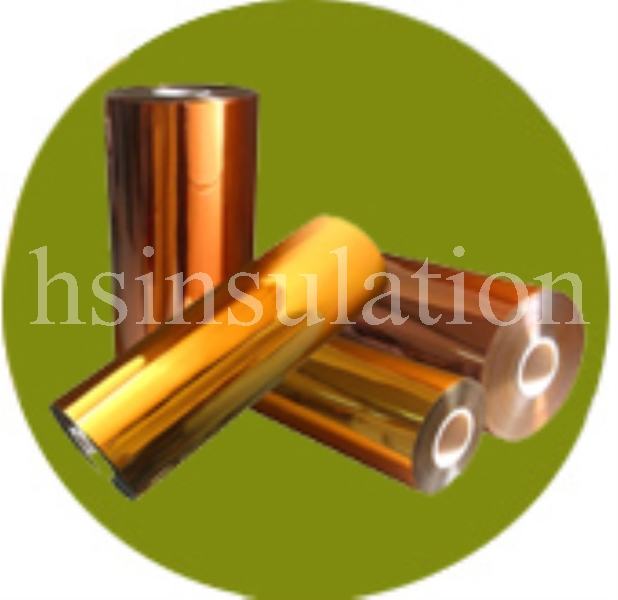

H Polyimide Film (6051)
H Polyimide film is synthesized
by polymerizing PMDA and ODA in strong polar solvents through the
process of film forming and imine treatment at high temperature.
1mil (0.025mm) ～ 10mil (0.250mm)
Thickness Tolerance: ± 0.002
Width: 0.3in (8mm) ～ 40in (1000mm)
Length: 2000m max
transparent,semi-transparent,golden,dark brown as the film thickness
Working temperature: -452F
°C) ～ +500F
Package: Width 7-20mm use Plastic Core, Width 21-1000mm use paper

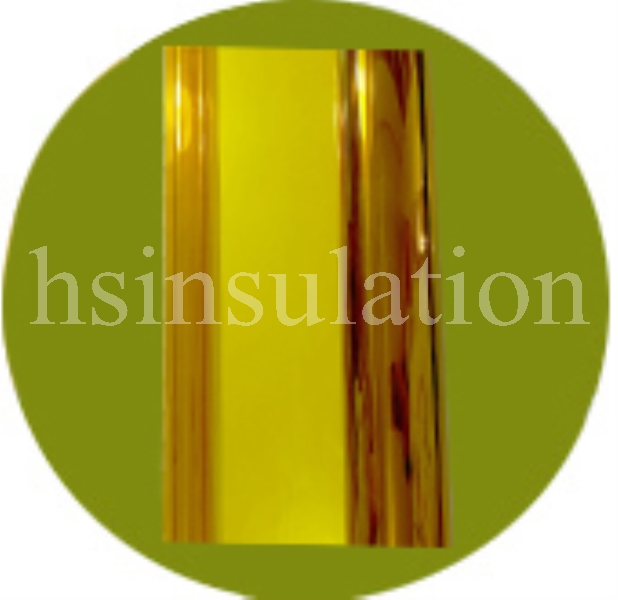

FPC Polyimide Film
FPC Polimide Film is synthesized by polymerizing an aromatic
dianhydride and an aromatic diamine.
Thickness Tolerance: ± 15
Density:1420 ± 20 (kg/m3)
Colour: dark golden
yellow,darker as the thickness is increased.
temperature: -452 F(-269°C) ～ +752 F (+400°C)
Package: in rolls and wound up to the pipe core.
FEP Polyimide Film (FH,FHF)
The FEP Polyimide is a dry adhesive tape, which is made by a
polyimide film coated with Teflon FEP fluoropolymer adhesive on one
side(FH) or both sides (FHF) upon high_temperature baking.
Thickness Tolerance: ± 0.003
Density:1420 ± 20 (kg/m3)
Paper Core Spec:76mm(3'')
Package:Inside is polythene film.Outside is carton or wooden

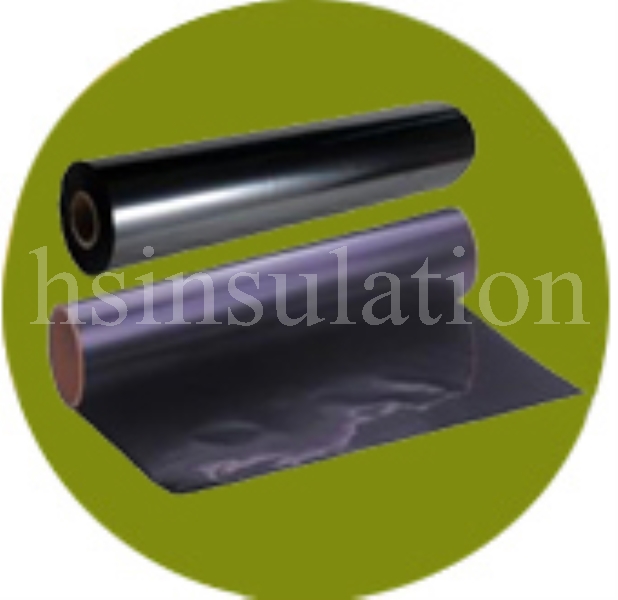

Polyimide Film (BY,BX,BL,HT)
●BY Black Polyimide Film has the heating-resistant, radiation
resistance, stable chemical react. Moreover, it also has the
performance of excellent mechanical property, thermal conductive,
electromagnetic wave shielding, it can either have matt or glossy
performance according to requirement, is best material for black
heat-resistant tape and black cover lay.
●BX Black Polyimide Film is strictly controlled of the surface
resistivity, with the performance of anti-static, excellent heat
conductivity, heat resistant, chemical stability, radiation
resistant and EMI shielding, best anti-static material in the
extreme environment. It is applied in module binding for LCD,
anti-static tape, anti-static shielding.
●BL Black Polyimide Film is high insulating material, the
electric breakdown strength is more than 5KV/mil, It also can make
into be matt, according to the requirement. It is applied in
insulation tape and other insulation equipment.
●HT Black Polyimide Film
is electrically conductive film for heating applications. The
surface resistivity is well controlled, the film resistive property
is retained throughout the film, it cannot be cracked, rubbed off or
easily damaged. As heating film, it has performance with radiation
resistant, endurable to aging, flexible, untwist impatient, light
material, long-asting, used as protect component for heating, heat
protection, Heater, heating facility for automotive, health care,
agriculture, aerospace, consumer electronics.

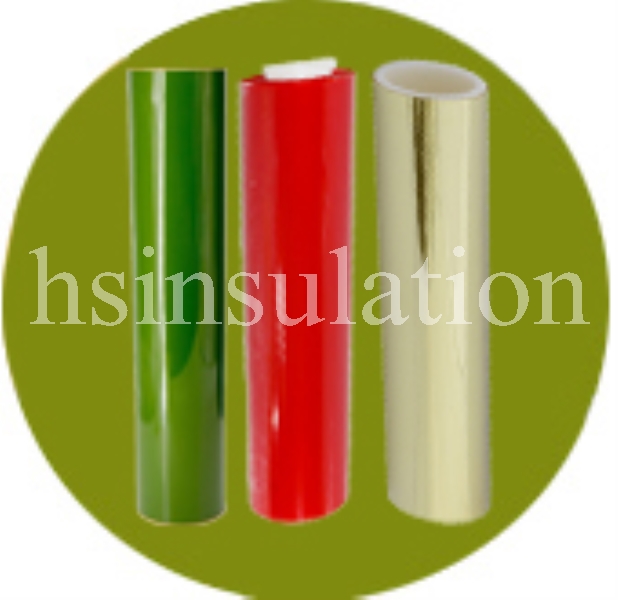

Colourful Polyimide Film
( Red, Green, Transparent )
Polyimide, abbreviated as PI, is a polymer
material with imide group. The reaction
mechanism involves the addition of diamines
and dianhydrides to form polyamic
acid, abbreviated as PAA, and then react
into polyimide after high temperature,
imidization and dehydration.
Use as high
temperature tape, FPC, IC passivation
coating, LCD alignment layer, and insulated
1) Colored labels for high heat
2) High performance adhesive tape.
3) Electrical Insulation.
4) FEP Coated materials.
5) UL-94V-0 flammability rating &
6) High light transparency or Colour
Polyimide Film is polyimide
film anti-static (ESD) treated, single coated with silicone
adhesive. Used Protection of PCB gold finger contacts during the
waving solder or hot air leveling process. And in applications where
electrostatic discharge is a concern.
1) Provide excellent electrostatic dissipation.
2) Provide high temperature resistance.
3) Leave no adhesive residue after remove.
4) High grade electrical equipment insulation protection and fix
lithium battery positive and negative pole.
5) Applicable in soldering protection.
6) Phone lithium battery manufacturing strapping.dielectric
7) ESD peel : < 100 volts ; ESD Surface:
105 ~ 10

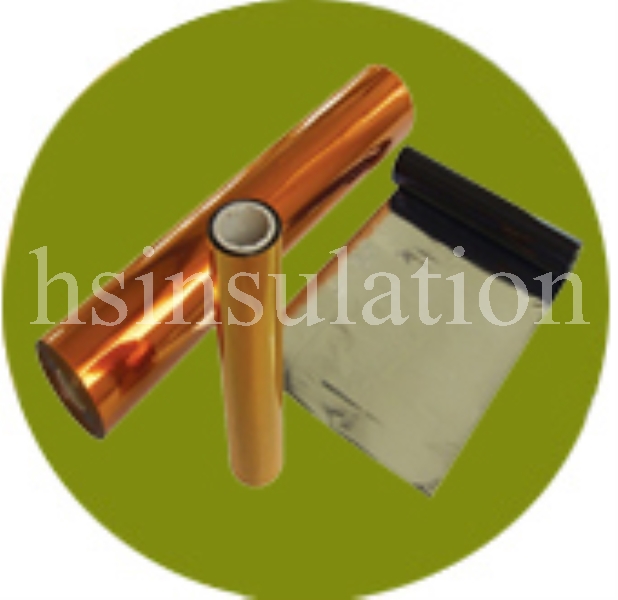

Aluminized Polyimide Film
Formed by sputtering metal aluminum, then develops thin aluminum
layer, with one side insulation, the other side high conduct
electricity. It not only has the performance of excellent heat
resistant, mechanical, chemical stability, radiation resistant, and
self-extinguishing, but also EMI shielding,high thermal
1) EMI shielding
2) High-temperature resistance, good radiation resistance
3) Halogen-free, environment-friendly, flame-retardant
4) Thickness available:25um 50um
Radiation resistant of the inner space suit, EMI shielding,
Seal material, Electromagnetic shielding tape, Flexible etching
Polyimide Adhesive Tape
1) Materials: Polyimide Film Single Side Coated with
2) This kind of tape is made of polyimide material with
Acrylic/Silicone adhesive,which shows excellent dielectric
insulation properties, high heat resistant and is widely used for
electrical insulation on motor, transformer, coils and so on.
3) Color: Amber
4) Thickness:0.06mm , 0.10mm
5) Testing temperature: -70-180℃
6) Tensile: ≥70Mpa
7) Breakdown strength: ≥90 MV/m
Polyimide FEP Tape (FCR Polyimide Tape) the
tape with ground of polyimide film manufactured by “doctor-blading
process”, single surface or double surfaces covered with glue F46,
and processed after drying and cutting. The tape is applicable for
acting as grade H insulating material of electrical wire lapping. It
takes into its shape through melting at 350-380 °C over ten minutes.
CR Type: Corona resistance polyimide film without any F46
FCR Type: Corona resistance polyimide film with F46 single side
FCRF Type: Corona resistace polyimide film with F46 double side
Mainly apply to sintering electromagnetic winding wire,traction
Thickness range 0.03mm --- 0.10mm ; Width : 10mm , 15mm , 20mm ,
Polyimide Sheet own high temperature resist, corrosion
resistance and excellent electrical proerties.
Polyemide is one of the best comprehensive performance organic
polymer materials. So PI plastic products/parts own these
1. High temperature resist up tp 400 deg
2. Can be long-term used in temperature range of -200deg to 300 deg.
3. No obvious melting point
4. High insulation performance, insulation grade is F to H class
PI plastic include pi plastic screw, pi plastic gasket, pi rod, pi
nut, pi rods, pi tube, pi piston, pi sleeve, pi gear, pi guitar pick
and so on.
PI(Polyimide) has an excellent mechanical and thermal
properties,wear-resistance,permeability wave,and self-lubricating
1) Flame resistance/high radiation-resistance
2) Excellent thermal properties/electrical properties
4) Color: natural,black ; Working temperature: 260
degree ; Dia: 10mm-100mm
5) Low out-gassing even at high vacuum condition
6)Exceptional Dimensional Stability
Polyimide foam insulation material synthesizes the structural
and performance advantages of polyimide resin and porous material,
is one of the foam materials with the best thermal stability among
the polymers; this product not only has such advantages as
non-combustible, smokeless, non-toxic, and resistance to high and
low temperature which are the inherent features of matrix resin, but
also has such functions as thermal insulation protection, acoustic
noise reduction and damping vibration reduction of foam porous
material, and it can be used in many fields, such as shipping,
aviation, aerospace, high-speed rail, electronic instrument.
1) Excellent flame retardant properties, oxygen index ≥36%.
2) Temperature: -196℃---500℃; long-term use can 260℃.
3) Excellent thermal insulation performance.
4) Good sound absorption performance.
5) Apparent density: 4.5-30kg/m3
Polyimide Fabric is a
woven by polyimide filament
-- 200D, 500D, 1000D and
1500D in accordance with the
density of various yarn
branches (8x8/cm, 9X9/cm,
widely used in uav, airship,
flexible material, light and
reinforcement (wind blade,
high-performance rope and
other fields due to its
advantages of high
temperature resistance, uv
resistance, high strength,
good resin infiltration, low
dielectric constant and wear
1) Area weight: 40--200g/m2
3) Denier: 100--1500 D
polyimide fiber products have good mechanical properties and
excellent properties of high temperature resistance, flame retardant
resistance, radiation resistance and decay resistance.
No. Items Unit Index
1 Fineness dtex 1.5~5
2 Density g/cm3 1.41
3 Breaking strength cN/dtex ＞4.0
4 Elongation at break % 10~30
5 Continuous use temperature ℃ 260
6 Decomposition temperature ℃ 560
7 Limiting oxygen index(LOI) % 38
8 Acid resistance Good
9 Alkali resistance General
10 UV radiation resistance Good
Polyimide Yarn can be used
toweave High temperature
protectivefabrics ,and also
can be used asreinforcing
materialin the composite
can be long-termused in
260℃.For its’ excellent
flame retardance and
insulation character and
light weight,it is widely
applied in cable sheath for
the aircraft and watercraft.
Furthermore, with the
outstanding character in U-V
filament is grateful in
theoutdoors cable sheath.
High temperature filter
2) Protective Fabric
3) Fire resistant and heat insulation material
