 6630 DMD (Class B)  Flexible Insulation Materials
Triple-layer insulation: Polyester film inside, outer layer non-woven on both sides resin impregnated.
Thickness: 0.15mm, 0.18mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm
Thickness Tolerance: 0.02--0.045mm
Standard Width: 980-990mm
Tapes: from 10mm width upwards
Breakdown Voltage: 6--22kv
Colour: White
Temperature: 130
Package:Inside is polythene film.Outside is carton or wooden case.



6641 DMD (Class F) Polyester Film
6641 F-DMD is a three-layer flexible laminate insulating material consisting of polyester fiber non-woven fabric/polyester film/polyester fiber non-woven fabric.
Thickness: 0.15mm, 0.18mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm, 0.40mm, 0.45mm
Thickness Tolerance: 0.02--0.045mm
Sheets: approx. 1000*900mm
Tapes: from 10mm width upwards
Breakdown Voltage: 6--22kv
Colour: Pink,Blue,White
Temperature: 155
Package:Inside is polythene film.Outside is carton or wooden case.

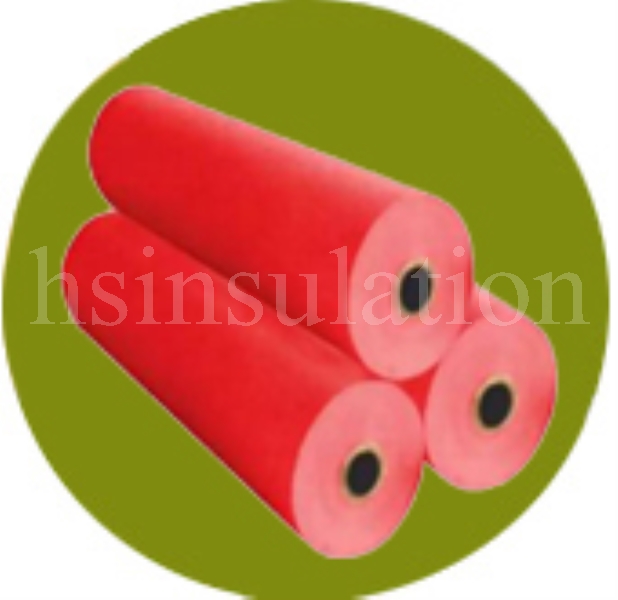

Prepreg DMD (Class F)
Prepreg DMD (class F) is formed in the process of precuring the modified F-class DMD with Impregnation of hi-temp resistant Epoxy resin into B-stage by baking.
Thickness: 0.16mm, 0.18mm, 0.20mm, 0.23mm, 0.25mm
Thickness Tolerance: 0.030--0.035mm
Form: rolls, sheets, strips  ; Nominal width(mm):1000mm
Colour: red
Temperature: 155
Package:Inside is polythene film.Outside is carton or wooden case.



6640 NMN
Polyimide Film
6640 NMN is two layer of insulation paper with one of polyester film, F class insulation material.
Thickness: 0.15mm, 0.18mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm
Thickness Tolerance: 0.02--0.04mm
Standard Width: 914mm
Breakdown Voltage: 7--20kv
Colour: natural colour
Temperature: 155
Package:Inside is polythene film.Outside is carton or wooden case.


6650 NHN Polyimide Film
6650 NHN is two layers of insulation paper laminated with one layer of polyimide film.
Thickness: 0.15mm, 0.17mm, 0.20mm, 0.23mm, 0.25mm, 0.30mm, 0.35mm
Thickness Tolerance: 0.02--0.04mm
Standard Width: 914mm
Sheets: 1000*914mm
Tapes: from 10mm width upwards
Breakdown Voltage: 8--10kv
Temperature: 180
Package:Inside is polythene film.Outside is carton or wooden case.

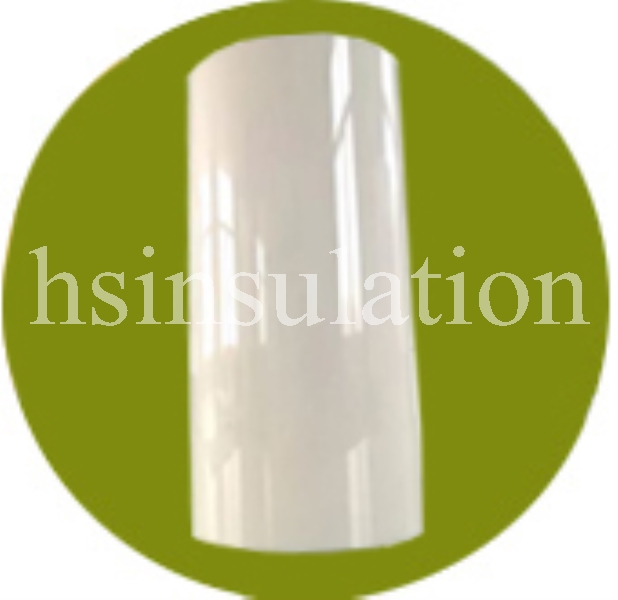

6021 Polyester film / Mylar film
6021 Polyester film is biaxially oriented polyethylene terephthalate (PET)film.
Thickness: 0.125mm, 0.188mm, 0.25mm, 0.30mm, 0.35mm
Thickness Tolerance: 3--4 %
Standard Width: 1000mm
Sheets: 1000*980mm
Tapes:from 10mm width upwards
Colour:Milky-White
Temperature: 120
Package:Inside is polythene film.Outside is carton or wooden case.




H Polyimide Film (6051)
H Polyimide film is synthesized by polymerizing PMDA and ODA in strong polar solvents through the process of film forming and imine treatment at high temperature.
Thickness: 1mil (0.025mm) ~ 10mil (0.250mm)
Thickness Tolerance: 0.002 0.012
Width: 0.3in (8mm) ~ 40in (1000mm)
Length: 2000m max
Colour: transparent,semi-transparent,golden,dark brown as the film thickness is increased
Working temperature:
-452F (269 C) ~ +500F (+260 C)
Package: Width 7-20mm use Plastic Core, Width 21-1000mm use paper Core.


FPC Polyimide Film
(6052)
FPC Polimide Film is synthesized by polymerizing an aromatic dianhydride and an aromatic diamine.
Thickness: 0.013mm,0.025mm,0.05mm,0.075mm,0.1mm,0.125mm
Thickness Tolerance: 15 8mm
Density:1420 20 (kg/m3)
Width: 1040~900mm
Length: 1500~300m
Colour: dark golden yellow,darker as the thickness is increased.
Working temperature:  -452 F(-269C) ~ +752 F (+400C)
Package: in rolls and wound up to the pipe core


FEP Polyimide Film (FH,FHF)
The FEP Polyimide is a dry adhesive tape, which is made by a polyimide film coated with Teflon FEP fluoropolymer adhesive on one side(FH) or both sides (FHF) upon high_temperature baking.

Thickness: 0.0375mm,0.04mm,0.05mm,0.06mm
Thickness Tolerance: 0.003 ~ (-0.004-- +0.005)
Width: 500mm
Length: 200m

Colour: golden
Density:1420 20 (kg/m3)
Paper Core Spec:76mm(3'')
Package:Inside is polythene film.Outside is carton or wooden case.


Black
Polyimide Film (BY,BX,BL,HT)
BY Black Polyimide Film
has the heating-resistant, radiation resistance, stable chemical react. Moreover, it also has the performance of excellent mechanical property, thermal conductive, electromagnetic wave shielding, it can either have matt or glossy performance according to requirement, is best material for black heat-resistant tape and black cover lay.
BX Black Polyimide Film is strictly controlled of the surface resistivity, with the performance of anti-static, excellent heat conductivity, heat resistant, chemical stability, radiation resistant and EMI shielding, best anti-static material in the extreme environment. It is applied in module binding for LCD, anti-static tape, anti-static shielding.
BL Black Polyimide Film is high insulating material, the electric breakdown strength is more than 5KV/mil, It also can make into be matt, according to the requirement. It is applied in insulation tape and other insulation equipment.
HT Black Polyimide Film is electrically conductive film for heating applications. The surface resistivity is well controlled, the film resistive property is retained throughout the film, it cannot be cracked, rubbed off or easily damaged. As heating film, it has performance with radiation resistant, endurable to aging, flexible, untwist impatient, light material, long-asting, used as protect component for heating, heat protection, Heater, heating facility for automotive, health care, agriculture, aerospace, consumer electronics.
Thickness: 12.5um~150um.

Working temperature:  260C400C




1) 3021 phenolic paper laminated sheet
Normal Dimension: 1970*970mm, 1020*2020mm ,1020mmx2040mm ,1220mmx2470mm
Normal Thickness: 0.5mm to 50mm
Density 1.3-1.45 g/cm3
Flexural Strength > 90 Mpa
Bonding Strength 2800 N

2) 3025 phenolic cotton cloth laminated sheet
3025 electrical insulating/insulation phenolic cotton laminated sheet with high mechanical and electrical properties, can be applied to generators, motors and electrical appliances as insulating structural parts and used in transformer oil and humid environment.
Characteristics: it is Class E insulating material.
Normal Dimension: 1970*970mm , 1020*2020mm
Density 1.3-1.45 g/cm3
Flexural Strength > 70 Mpa
Bonding Strength 5500 N

3) 3240 epoxy-phenolic glass cloth laminated sheet
Sheets:  Thickness : 0.5-100mm;
Widthxlength: 1970*970mm, 1020*2020mm,  1000x2000mm, 1200x2400mm
Density 1.7-1.9 g/cm3
Flexural Strength > 340 Mpa
Impact Strength parallel > 33 KJ/m2

4) G10/FR4/G11/FR5 Epoxy Glass Cloth Laminated Sheets
FR4 Laminates sheet(FR4 Sheet, FR4 Tube, FR4 insuation parts), used widely electronic laminates material, F grade thermal resist.
Thickness:  0.1mm - 150.0mm
Normal Size: 1020* 1220mm, 1022mm * 1200mm,
Color: natural, yellow, green, white, black etc
Density 1.7-1.9 g/cm3
Flexural Strength > 340 Mpa
Impact Strength parallel > 37 KJ/m2
Insulation resistance after water dipping  ≥5.010Ω
Parallel layer direction breakdown voltage at 902 transformer oil  ≥35 KV

G11-epoxy fibre glass cloth laminated sheet is made of electrical non-alkali and non-wax glass cloth impregnated with epoxy resin by processing under pressure and heat. It is class F insulation class(155 degree). With high mechanical properties at medium humidity and good dielectric stability at high humidity,  The G11 material is stronger and has a higher temperature  rating than FR4 material;
Water Absorption:  0.11 %
Dielectric Breakdown: 80 kv
Arc Resistance ≥ 60 s
Normal Size: 1022mm * 1200mm
Color: natural, green etc


GPO-3 laminated sheet is the rigid insulation material which produced by non-alkali glass fiber mat combining with the unsaturated. GPO-3 laminates are widely used in electrical equipment, circuit breakers, switchgear, transformers, DC motors, AC contactor, low voltage electrical appliances etc.
Flexural Strength > 180 Mpa
Water Absorption:  0.20 %
Comparative Tracking Index  ≥  600 V
Arc Resistance ≥ 180s
Normal Size: 1022mm * 1200mm
Thickness: 1-50mm
Color: red & white

5) Copper Clad Laminated Sheet ( CCL Sheet )
FR-4 CCL
is made of flame resistant epoxy glass fabric copper-clad adhered glass fabric by flame resistant epoxy resin.With modify-epoxy glass cloth board.and suitable for making PCB board that used for Computer,communication device,measuring instrument,router,etc.(Color: natural color,yellow and black etc ;  Environmental protection: ordinary,halogen-free)
CEM-3 CCL
is a kind of copper foil covered laminated board formed through heat pressing after the electric industry alkali-free glass fiber( Flame- retardant epoxy resin E-glass fiber cloth as the cladding,glass fiber mat as the core part) dips into thermoset epoxy resins and is covered with copper foil at one side or both sides. Usually used in PCB with printed circuit on one or both sides of computers, home electric appliances and other lines.(Color: natural color,black,titanium white etc)
CEM-1 CCL
is made of of bleached wood pulp paper, impregnated with flame retardant epoxy resin and clad with single glass fabric on both sides and electrolytic copper foil. used for computers, VCD sets, Hi-Fi acoustic devices and other high grade electronic appliances. (Color: yellow,titanium white)
Aluminum CCL
have excellent flame retardant, high mechanical strength,dimensional stability etc. Especially it has vey good heat sink, electromagnetic shielding and solder float. used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
Tg 140C(DSC)
Thickness: 0.05~3.2 mm (0.002~0.125 Inch)
